Mini-PLC
PR102 40 I/O
More inputs and outputs –
more possibilities
-
40 built-in I/O are enough to cover basic and more advanced
control tasks without any extensions
Sufficient
-
8 configurable analog inputs and
2 configurable analog
outputs
in addition to
30 digital inputs and outputs
Flexible
-
+ 32 additional I/O points with stackable I/O modules
and
numerous extension options over
2x RS485 (Modbus
Master/Slave)
Expandable
-
User-friendly yet powerful programming software at no cost
Free

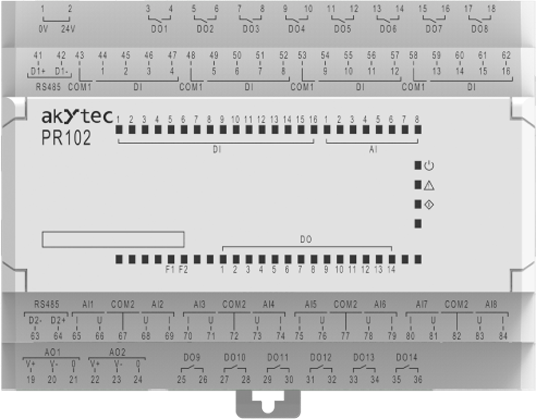

Let’s have a closer look
-
1
2
3
4
5
1
16 digital inputs
which allow connecting
switch contacts 24 V DC
2
8 configurable AI
individually
configurable analog inputs (0-10 V, 4-20 mA, Pt500/1000,
Ni500/1000, NTC, PTC, 0-300 kOhm, digital mode)
3
14 relay outputs (NO)
Switching
capacity, AC: 5 A, 250 V
Switching capacity, DC: 3 A,
30 V
4
2 configurable AO
individually
configurable for 0-10V or 4-20mA
5
2 RS485
with two RS485 ports supporting
Master/Slave mode of operation, PR102 can communicate with
up to 32 Modbus-RTU/ASCII-enabled devices (HMI panels, I/O
modules, etc.)
-
1
2
3
4
5
1

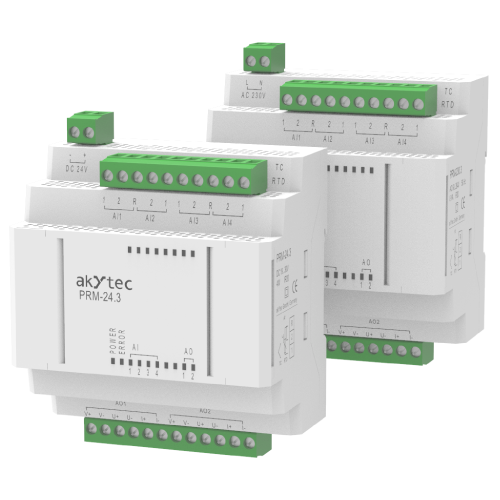

I/O Module Connector
connects up to 2
PRM series I/O modules adding up to 32 I/O points over an
internal bus with no loss in performance
2
microUSB port
for communication between
PR102 and PC (user-program upload and online debugging)
3
RUN/STOP switch
for manual control of
the program
4
Backup battery
convenient battery
replacement
5
43 LED status indicators
indicate the
status of inputs and outputs, power supply, and
communication
-
1
2
3
4
5
1

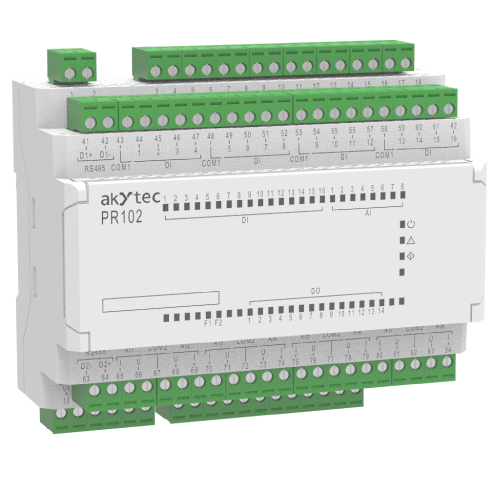

Removable terminal blocks
for quick and
easy device replacement
2
24 VDC power input
with voltage range
9...30 VDC
3
MCB-like form (Miniature Circuit Breaker)
The device enclosure perfectly fits into almost any
consumer unit as well as into control cabinets
4

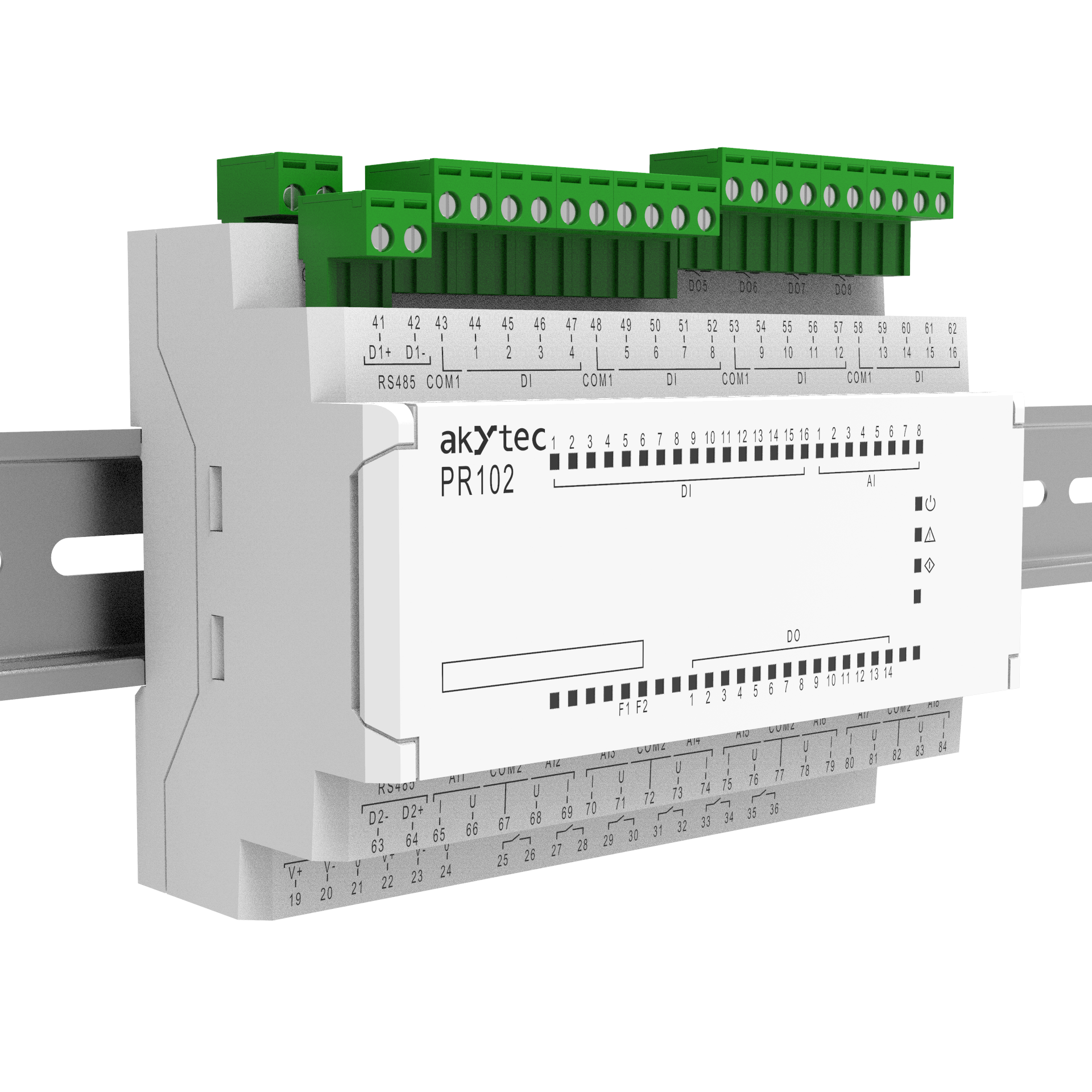

DIN rail mount
spring clips for rapid
installation on a DIN rail: no need for tools
5
Extended operation temperature range
-40...+55 ºС
