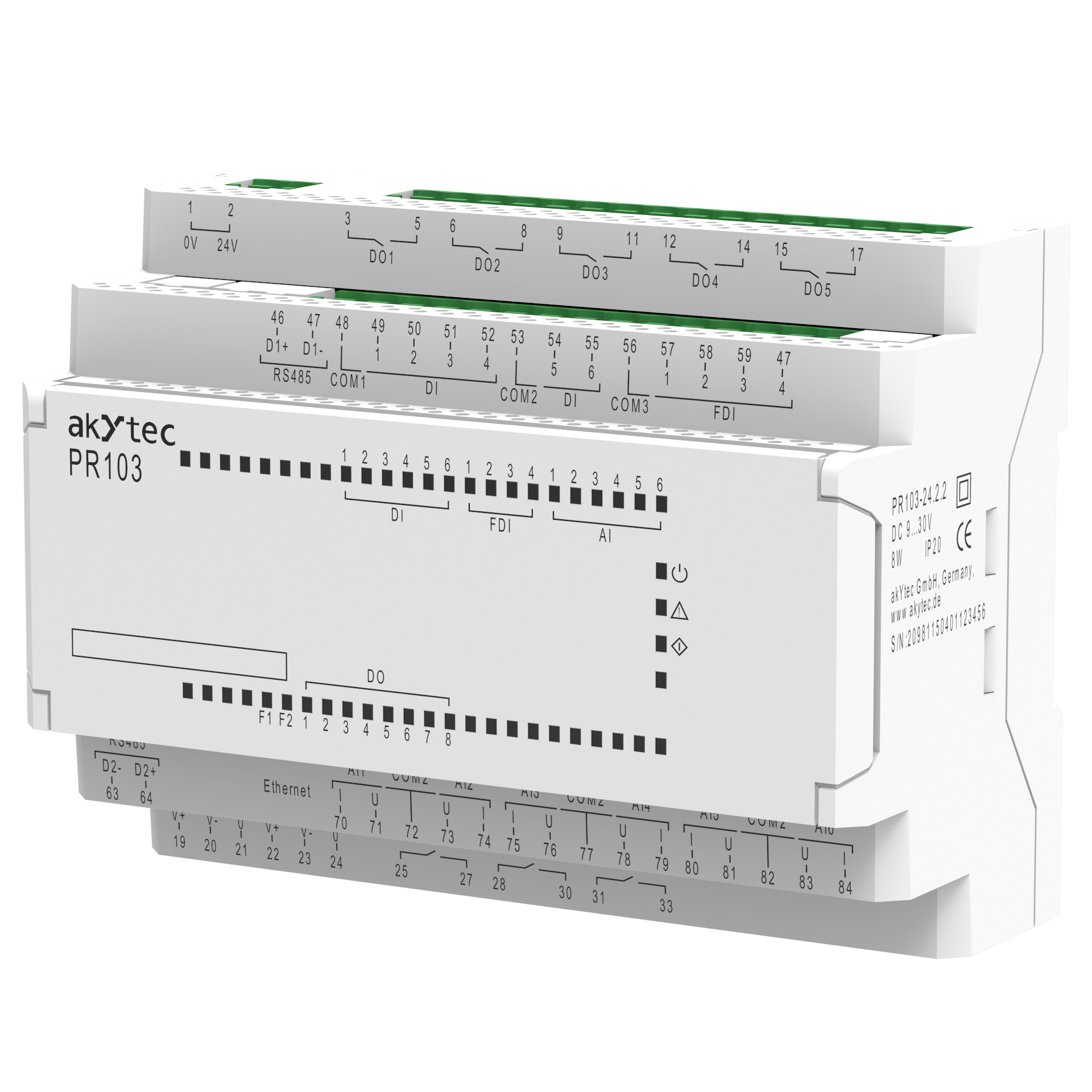

Mini-PLC PR103
Device specifications
Mini-PLC PR200
Specifications
PR200.230.1 | PR200.230.2(4) | PR200.24.1 | PR200.24.2(4) | ||
General | |||||
---|---|---|---|---|---|
Power supply | 230 (90...264) V AC; 50 (47...63) Hz |
24 (19...30) V DC | |||
Power consumption, max. | 10 VA | 17 VA | 10 W | ||
Integrated voltage source | - | 24±3 V DC 100 mA | - | ||
Real Time Clock | Backup 5 years (CR2032) | ||||
Display |
LCD with backlight, 2-line, 2x 16-characters |
||||
Function keys | 6 | ||||
Programming | |||||
Programming environment | akYtec ALP | ||||
Programming language | FBD | ||||
Programming interface | Mini-USB | ||||
ROM | 128 kB | ||||
Retain memory | 1016 Byte | ||||
Communication | |||||
Interface card | PR-IC485 (max. 2) | ||||
Interface | RS485 | ||||
Protocols | Modbus RTU / ASCII (Master / Slave) | ||||
Baud rate | 9.6...115.2 kBit/s | ||||
Digital inputs | |||||
Quantity | 8 | ||||
Type | Switch contact |
Switch contact PNP with open collector Digital signals -3...30 V DC |
|||
Logical states | 1 | 159...264 V AC (0.75...1.5 mA) | 15...30 V DC (5 mA) | ||
0 | 0...40 V AC (0...0.5 mA) | -3...+5 V DC (0...1 mA) | |||
Galvanic isolation | in groups of 4 | ||||
Universal inputs | |||||
Quantity | - | 4 | - | 4 | |
Input signal | - | Analog / Digital | - | Analog / Digital | |
Galvanic isolation | none | ||||
Analog input | - | 4-20 mA, 0-10 V, 0-4 kohm |
- | 4-20 mA, 0-10 V, 0-4 kohm |
|
Resolution ADC | 12 bit | ||||
Digital outputs | |||||
Quantity | 6 | 8 | 6 | 8 | |
Type | relay, NO | ||||
Galvanic isolation | in groups of 2 | ||||
Contact capacity | AC | 5 A, 250 V (resistive load) | |||
DC | 3 A, 30 V | ||||
Minimum load current | 10 mA (at 5 V DC) | ||||
Analog outputs | |||||
Quantity | - | 2 | - | 2 | |
Analog outputs | - | 4-20 mA, 0-10V (for PR200.X.4) |
- | 4-20 mA, 0-10V (for PR200.X.4) |
|
Permissible load | - | 12...30 V, max. 1 kohm |
- | 12...30 V, max. 1 kohm |
|
Resolution DAC | 10 bit | ||||
Environment | |||||
Ambient temperature | -20...+55 °C | ||||
Storage temperature | -25...+55 °C | ||||
Humidity | up to 80% (non-condensing) | ||||
IP Code | IP20 | ||||
Enclosure | |||||
Dimensions | 123 x 108 x 58 mm | ||||
Weight | ca. 350 g | ||||
Material | plastic |
Download
|
|
|
|
Programming enviroment akYtec ALP
akYtecALP_1.20.276 |
|
|
Digital extension module PRM-X.1
Specifications
PRM-230.1 | PRM-24.1 | ||
General | |||
---|---|---|---|
Power supply |
230 (90...264) V AC; 50 (47...63) Hz |
24 (19...30) V DC | |
Power consumption, max. | 8 VA | 4 W | |
Mounting | DIN rail (switchboard / distribution box) | ||
Ambient temperature | -20...+55 °C | ||
IP code | IP20 | ||
Dimensions | 80 x 108 x 58 mm | ||
Weight | approx. 250 g | ||
Digital inputs | |||
Quantity | 8 | ||
Type | Switch contact |
Switch contact PNP with open collector Digital signals -3...30 V DC |
|
Logical states | 1 | 159...264 V AC (0.75...1.5 mA) | 15...30 V DC (5 mA) |
0 | 0...40 V AC (0...0.5 mA) | -3...+5 V DC (0...1 mA) | |
Galvanic isolation | in groups of 4 | ||
Digital outputs | |||
Quantity | 8 | ||
Type | Relay, NO | ||
Galvanic isolation | in groups of 2 | ||
Contact capacity | AC | 5 A, 250 V (resistive load) | |
DC | 3 A, 30 V | ||
Minimum load current | 10 mA (at 5 V DC) |
Download
|
|
Analog extension module PRM-X.3
Specifications
PRM-230.3 | PRM-24.3 | |
General | ||
---|---|---|
Power supply | 230 (90...264) V AC; 50 (47...63) Hz |
24 (19...30) V DC |
Power consumption, max. | 8 VA | 4 W |
Mounting | DIN rail (switchboard / distribution box) | |
Ambient temperature | -20...+55 °C | |
IP code | IP20 | |
Dimensions | 80 x 108 x 58 mm | |
Weight | approx. 250 g | |
Analog inputs | ||
Quantity | 4 | |
Type | RTD, TC, 0-4 kohm, 0(4)-20 mA, 0-1 V | |
ADC resolution | 16 bit | |
Galvanic isolation | - | |
Analog outputs | ||
Quantity | 2 | |
Type | 4-20 mA, 0-10 V, 0-5 V, 0-20(24) mA | |
Galvanic isolation | in groups of 1 | |
DAC resolution | 12 bit |
Download
|
|
|
|
Specifications
General | ||
---|---|---|
Power supply | 24 (9...30) V DC | |
Power consumption, max. | 10 W | |
Real Time Clock | Backup 5 years (CR2032) | |
Real Time Clock accuracy | ± 3 s/day | |
Extension modules | up to 2 PRMs | |
Logging | ||
Dataset size, max. | 2 kB | |
Logging cycle, min. | 30 sec | |
File type | *.CSV | |
Programming | ||
Configuration software | akYtec Tool Pro | |
Programming environment | akYtec ALP | |
Programming language | FBD | |
Programming interface | Mini-USB, Ethernet | |
Memory | ROM | 128 kB |
RAM | 32 kB | |
Retain memory | 1016 Byte | |
Communication | ||
Interfaces | 2x RS485, Ethernet | |
Ethernet | ||
Protocols | Modbus TCP (Slave) | |
Baud rate | 10/100 MBit/s | |
Galvanic isolation | 510 W | |
RS485 | ||
Quantity | 2 | |
Protocols | Modbus RTU / ASCII (Master / Slave) | |
Baud rate | 9.6...115.2 KBit/s | |
Galvanic isolation | 1500 W | |
Digital inputs | ||
Quantity | 6 | |
Type | Switch contact | |
Logical states | 1 | 8.5...30 V DC (2...5 mA) |
0 | -3...+5 V DC (0...15 mA) | |
Galvanic isolation | in groups of 2 and 4 | |
Fast digital inputs | ||
Quantity | 4 | |
Logical states | 1 | 8.5...30 V DC (2...5 mA) |
0 | -3...+5 V DC (0...15 mA) | |
Pulse width, min. | 5 mks | |
Pulse frequency, max. | 100 kHz | |
Galvanic isolation | in group of 4 | |
Universal inputs | ||
Quantity | 6 | |
Input signal | Analog / Digital | |
Galvanic isolation | none | |
Analog input | 4-20 mA, 0-10 V, 0-300 kOhm, Pt1000, PTC, NTC | |
ADC resolution | 12 bit | |
Digital outputs | ||
Quantity | 8 | |
Type | relay, NO | |
Galvanic isolation | individual | |
Switching capacity | AC | 5 A, 250 V (resistive load) |
DC | 3 A, 30 V | |
Minimum load current | 10 mA (at 5 V DC) | |
Analog outputs | ||
Quantity | 2 | |
Analog outputs | 4-20 mA, 0-10 V | |
Permissible load | 15...30 V | |
DAC resolution | 12 bit | |
Galvanic isolation | individual | |
Environment | ||
Ambient temperature | -40...+55 °C | |
Storage temperature | -25...+55 °C | |
Humidity | up to 80 % (at +25 °C, non-condencing) | |
IP Code | IP20 | |
Enclosure | ||
Dimensions | 123 × 108 × 58 mm | |
Weight | approx. 350 g | |
Material | plastic |
Download
|
|
Mini-PLC PR102
Specifications
General | ||
---|---|---|
Power supply | 24 (9...30) V DC | |
Power consumption, max. | 8 W | |
Real Time Clock | Backup 5 years (CR2032) | |
Real Time Clock accuracy | ± 3 s/day | |
Extension modules | up to 2 PRMs | |
Programming | ||
Programming environment | akYtec ALP | |
Programming language | FBD | |
Programming interface | Mini-USB | |
Memory | ROM | 128 kB |
RAM | 32 kB | |
Retain memory | 1016 Byte | |
Communication | ||
Interfaces | 2x RS485 | |
Protocols | Modbus RTU / ASCII (Master / Slave) | |
Baud rate | 9.6...115.2 kBit/s | |
Digital inputs | ||
Quantity | 16 | |
Type | Switch contact | |
Logical states | 1 | 8.5...30 V DC (2...5 mA) |
0 | -3...+5 V DC (0...15 mA) | |
Galvanic isolation | none | |
Universal inputs | ||
Quantity | 8 | |
Input signal | Analog / Digital | |
Galvanic isolation | none | |
Analog input | 4-20 mA, 0-10 V, 0-300 kohm, Pt1000, PTC, NTC | |
ADC resolution | 12 bit | |
Digital outputs | ||
Quantity | 14 | |
Type | relay, NO | |
Galvanic isolation | individual | |
Switching capacity | AC | 5 A, 250 V (resistive load) |
DC | 3 A, 30 V | |
Minimum load current | 10 mA (at 5 V DC) | |
Analog outputs | ||
Quantity | 2 | |
Analog outputs | 4-20 mA, 0-10 V | |
Permissible load | 12...30 V | |
DAC resolution | 12 bit | |
Galvanic isolation | individual | |
Environment | ||
Ambient temperature | -40...+55 °C | |
Storage temperature | -25...+55 °C | |
Humidity | up to 80 % (at +25 °C, non-condencing) | |
IP Code | IP20 | |
Enclosure | ||
Dimensions | 123 × 108 × 58 mm | |
Weight | approx. 250 g | |
Material | plastic |
Download
|
|
Programming enviroment akYtec ALP
akYtecALP_1.20.276 |
|
|
Mini-PLC PR100
Specifications
General | ||
---|---|---|
Power supply | 24 (9...30) V DC | |
Power consumption, max. | 4 W | |
Real Time Clock | Backup 5 years (CR2032) | |
Real Time Clock accuracy | ± 3 s/day | |
Extension modules | none | |
Programming | ||
Programming environment | akYtec ALP | |
Programming language | FBD | |
Programming interface | Mini-USB | |
Memory | ROM | 128 kB |
RAM | 16 kB | |
Retain memory | 1 kB | |
Network variables | 128 Byte | |
Communication | ||
Interface | RS485 | |
Protocols | Modbus RTU / ASCII (Master / Slave) | |
Baud rate | 9.6...115.2 kBit/s | |
Digital inputs | ||
Quantity | 8 | |
Type | Switch contact | |
Logical states | 1 | 8.5...30 V DC (2...5 mA) |
0 | -3...+5 V DC (0...15 mA) | |
Galvanic isolation | in groups of 4 | |
Universal inputs | ||
Quantity | 4 | |
Input signal | Analog / Digital | |
Galvanic isolation | none | |
Analog input | 4-20 mA, 0-10 V | |
Resolution ADC | 12 bit | |
Digital outputs | ||
Quantity | 8 | |
Type | relay, NO | |
Galvanic isolation | individual | |
Switching capacity | AC | 5 A, 250 V (resistive load) |
DC | 3 A, 30 V | |
Minimum load current | 10 mA (at 5 V DC) | |
Environment | ||
Ambient temperature | -40...+55 °C | |
Storage temperature | -25...+55 °C | |
Humidity | up to 80 % (at +25 °C, non-condencing) | |
IP Code | IP20 | |
Enclosure | ||
Dimensions | 88 × 108 × 58 mm | |
Weight | approx. 250 g | |
Material | plastic |
Download
|
|
Programming enviroment akYtec ALP
akYtecALP_1.20.276 |
|
|
