Digital temperature controller

On/Off (Bang/Bang) Temperature Controllers 2TCR1
2TCR1 is a dual-channel temperature On/Off (Bang/Bang) controller designed for measuring, recording, or automatically regulating temperature, as well as other physical quantities (pressure, humidity, level, flow, etc.). Its key strength lies in independent dual-channel control, allowing for advanced logic like mean value or delta-based regulation. The presence of a second input allows for regulation based on two quantities, calculating either the average value or the difference between the input readings. The presence of RS-485 allows all measured and configurable parameters of the device to be transmitted to the enterprise's dispatching network.
Main features of 2TCR1:
Measurement and regulation of physical quantities across two channels:
According to a two-position control law;
One measured quantity according to a three-position control law;
Analog P-control;
Weather-dependent control
Monitoring of communication loss with actuators.
Alarm for measured quantities exceeding specified limits.
Programming via MicroUSB.
Manual control mode for actuators.

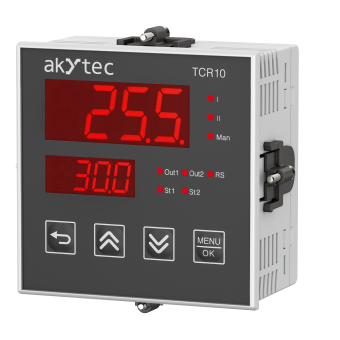

[Coming soon] PID Temperature controller TCR10
The TCR10 is a universal PID controller designed for precise measurement and control of temperature, pressure, level, humidity, flow, concentration, and other physical parameters in various industrial processes.Depending on the application, the controller can operate in PID, PI, PD, or On/Off control modes.
The Auto-Tune function automatically determines the optimal PID parameters, ensuring stable and accurate control without manual adjustment.A key strength of the TRM10 is its high-precision PID algorithm, maintaining process stability within ±0.2 °C.
The built-in RS-485 interface (Modbus ASCII/RTU) enables remote configuration, monitoring, and integration into automation systems.
Main features of TCR10:
Universal input for various sensor types: thermocouples, RTDs, and analog signals (0–10 V, 4–20 mA).
Multiple control modes: On/Off, P, PI, PD, PID.
Auto-Tune function for automatic PID parameter optimization.
Remote start/stop via additional digital input.
Alarm functions for process deviation and loop break detection (LBA).
USB-C interface for easy configuration from PC (no external power required).
RS-485 (Modbus ASCII/RTU) communication for integration into SCADA and control systems.
Power supply options: 230 V AC or 24 V DC.
Operating temperature range: –40 °C … +50 °C.
