LoRaWAN Pulse Counters
A range of devices specifically designed to reduce customers costs for collecting resource consumption data by enabling data transmission from existing metering devices via a wireless, energy-efficient LoRaWAN interface.
| IC | 200 - | MRTU - | LW. | EU. | 0. | 2. | 1. | 1 | ||
| CI | 200 - | LW. | EU. | 0. | 2. | 4. | 1. | 0. | 1 | |
| Device type | ||||||||||
| CI: Pulse counter | ||||||||||
| IC: Interface converter | ||||||||||
| Housing variant | ||||||||||
| 200: Standard housing | ||||||||||
| 201: Special for Elster/Honeywell gas meter of BD series | ||||||||||
| Converting protocol (not specified if there is no protocols) | ||||||||||
| MRTU: Modbus RTU (RS-485) | ||||||||||
| MBUS: M-Bus (RS-485) | ||||||||||
| Radio protocol | ||||||||||
| LW: LoRaWAN | ||||||||||
| Supported frequency bands | ||||||||||
| EU: EU863-870 (Europe) | ||||||||||
| US: US902-928 (United States) | ||||||||||
| Antenna type | ||||||||||
| 0: Internal | ||||||||||
| 1: External | ||||||||||
| Batteries | ||||||||||
| 2: Standard battery pack (2 batteries) | ||||||||||
| Numbers of DI (not specified if there is no DI, DO, or AI) | ||||||||||
| 0: Without | ||||||||||
| N: Numbers | ||||||||||
| Numbers of DO (not specified if there is no DI, DO, or AI) | ||||||||||
| 0: Without | ||||||||||
| N: Numbers | ||||||||||
| Numbers of AI (not specified if there is no DI, DO, or AI) | ||||||||||
| 0: Without | ||||||||||
| N: Numbers | ||||||||||
| Cable type and lenght (not specified if there is no cable) | ||||||||||
| 1: 2x UTP cables (lenght 1,5 m) | ||||||||||
| 2: N: customized versions | ||||||||||
-

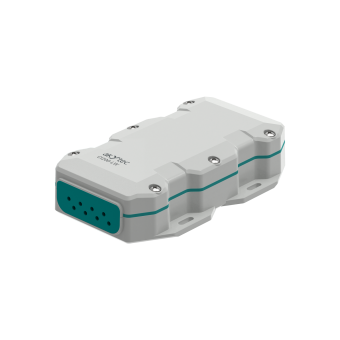

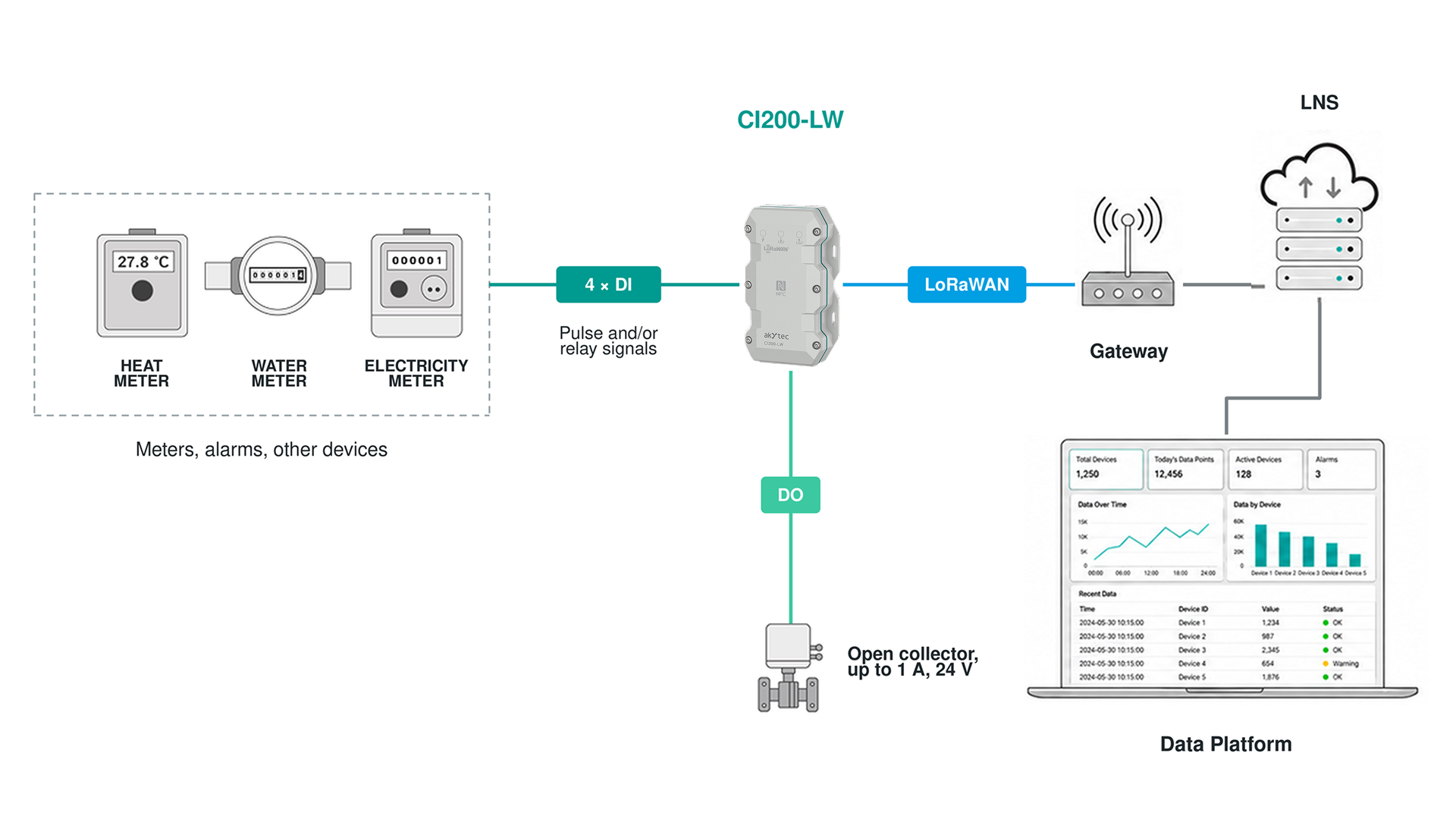

The CI200-LW pulse counter is designed for monitoring the state of discrete inputs (pulse counting or emergency signal detection), with subsequent accumulation and transmission of measurements via the LoRaWAN network. The device is battery-powered with the option to connect an external DC power source.
-

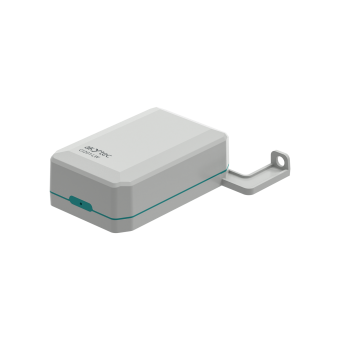

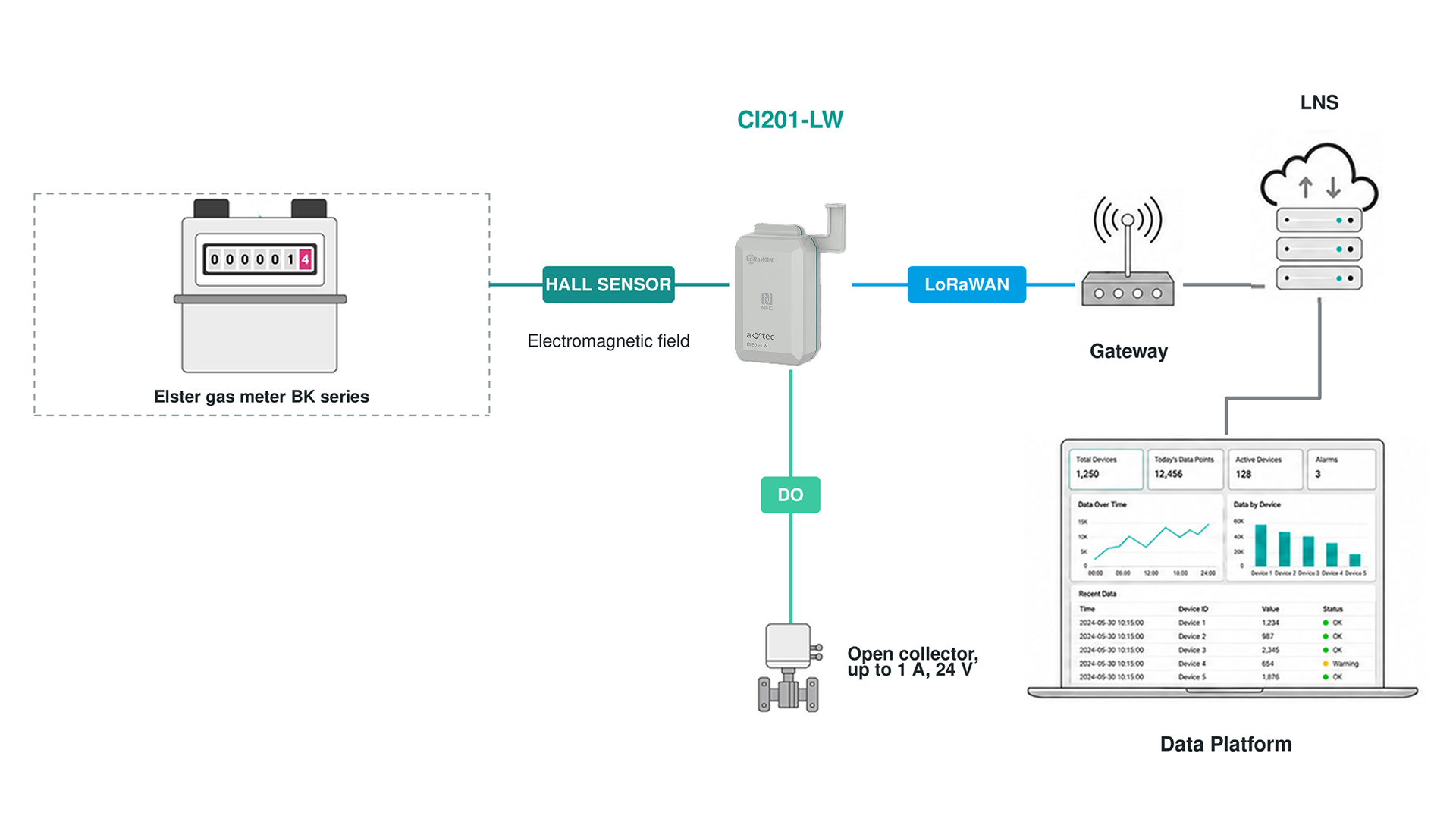

The CI201-LW pulse reader is designed for using together with BK-series of Honeywell Elster Metronica gas meter, for wireless pulse reading with subsequent accumulation and transmission of measurements via the LoRaWAN network. The CI201-LW connects to standard socket of gas meter and has Hall sensor to monitor an illegal metering corrections. The device is battery-powered.
