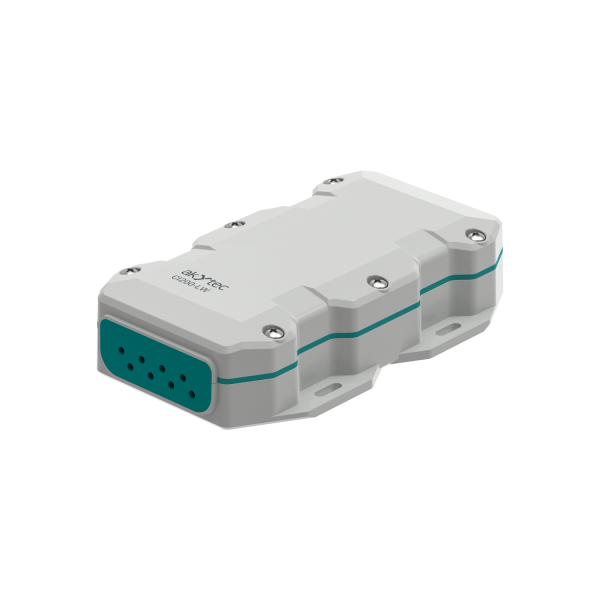

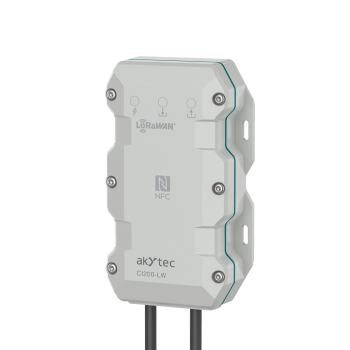

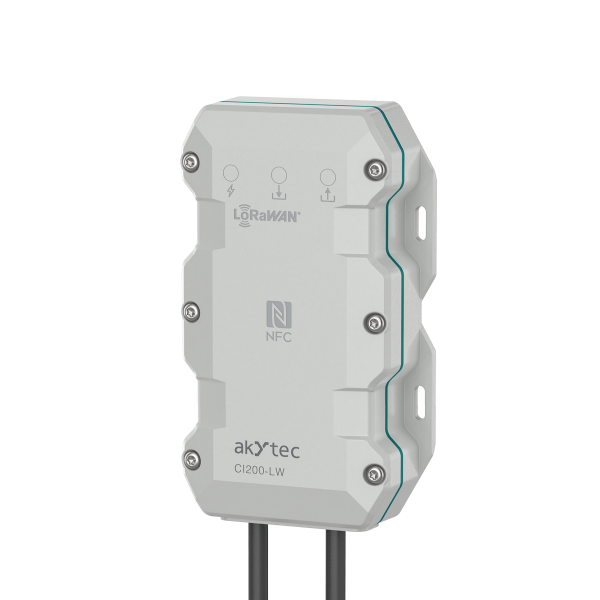

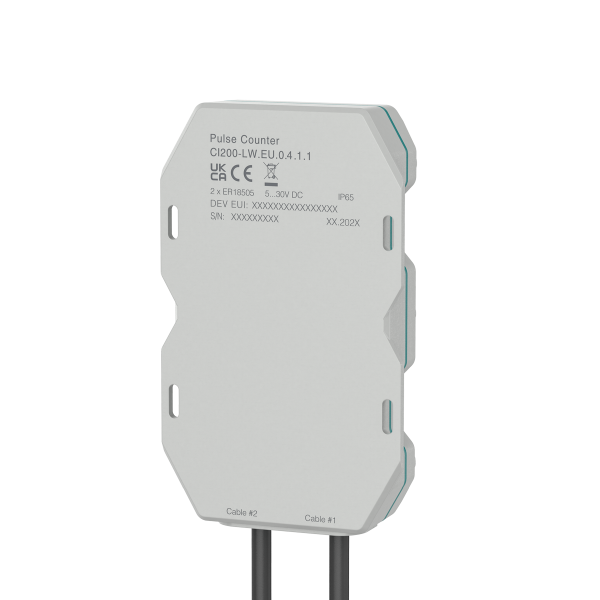

The CI200-LW pulse counter is designed for monitoring the state of discrete inputs (pulse counting or emergency signal detection), with subsequent accumulation and transmission of measurements via the LoRaWAN network. The device is battery-powered with the option to connect an external DC power source.

* Device variants:

CI200-LW.EU.0.2.4.1.0.1(Europe frequency band, internal antenna, outdoor)
CI200-LW.EU.1.2.4.1.0.1(Europe frequency band, external antenna, outdoor)

* Required Fields

Qty: - +

Product Description

Details

Product Description

Main features

LoRaWAN 1.0.4 class A, С
Power Supply: Batteries and 5… 30 V DC
Activation method: ABP / OTAA
Activation: NFC
Device setup: Mobile App via Bluetooth LE
4 x DI (status/pulse) and 1 x DO (open collector)

Applications

Integration up to 4 existing utility meters in to wirless LoRaWAN network
Organize the wireless monitoring the statuses of up to 4 remote devices
Organize the wireless control of 1 remote operating unit

Specifications

Data transfer interface
Data transmitting technology	LoRaWAN 1.0.4 class A, С
Frequency Bands	EU868 (US915 and others - by request)
ADR support	yes
Transmission power, max.	+20 dBm
Receiver sensitivity	-137 dBm
Communication period	1, 5, 10, 30 min; 1, 4, 6, 12, 24 hours
Memory capacity for storing packets	20 000 packages
Transmitter power, max.	100 mW
Activation method in the LoRaWAN network	ABP / OTAA
Antenna type	Internal / External (by request)
Encryption algorithm	Hardware AES-128
Configuration interfaces
Device identification	NFC-A
Device setup	Bluetooth LE 5.1
Configuration software
Mobile app	akYtec IoT Configurator
Digital/Pulse input
Operating mode switching	software
Number	4 pcs
Frequency of registered pulses, max., Hz	100 (200 Hz, with additional EMI protection)
Internal pull-up to device power supply	yes
ESD protection	yes
Type of connected devices	"dry" contact, open collector
Digital output
Number	1 pcs
Load current, no more than	1 A
Switching voltage	Up to 24 V DC
Type of digital output	Open collector
Memory
Memory type	flash
Built-in memory capacity	8 MB
Power supply
Battery voltage	3,6 V
Battery type	2 х ER18505
Total battery capacity	4 000 mAh
Autonomous operation time	Up to 5 years, depending on settings
External DC power supply	5…30 V
Mechanical
Color	RAL 7035 (light gray)
Material	ABS+PC plastic
IP code	IP65
Dimensions	129 х 79 х 29 mm
Cable length	2 x 1m
Weight, max.	approx. 230 g (with cables)
MTBF	50 000 hours

Connections

Color	Cable #1	Cable #2
Green	DI1	DO
Green-white	COM1	COM
Blue	DI2	BAT
Blue-white	COM2	–
Orange	DI3	24V
Orange-white	COM3	–
Brown	DI4	0V
Brown-white	COM4	–

Documents And Software

Bedienungsanleitung CI200-LW_3-DE-154131-1.1
Kurzanleitung CI200-LW_3-DE-153474-1.2
User guide CI200-LW_3-EN-154010-1.1
Short Guide CI200-LW_3-EN-153475-1.2

Software

AkytecIoTConfigurator_12.08

Additional Information

FAQ

What is LoRaWAN?

LoRaWAN (Long Range Wide Area Network) is a special technology for wireless data transmission over long distances with very low power consumption. It is ideal for devices that run on batteries for years and transmit small amounts of information, such as meter readings or sensor data.

Why do I need LoRaWAN devices?

Our LoRaWAN devices allow you to remotely collect data from various meters (water, gas, electricity) or other industrial devices using wireless communication. This is convenient for automated data collection, monitoring, and control, without the need for wiring.

What devices do you offer?

We offer four main types of LoRaWAN devices:

LoRaWAN Pulse Counter: Used to collect data from any meters that generate pulses (e.g., water or electricity meters).
LoRaWAN Pulse Counter for Elster Gas Meter: A specialized device for reading data from Elster gas meters.
LoRaWAN M-BUS Converter: Allows connecting M-BUS protocol devices (often heat or water meters) to the LoRaWAN network.
LoRaWAN MODBUS Converter: Designed to integrate industrial devices with a MODBUS interface (e.g., sensors or controllers) into the LoRaWAN network.

What are DevEUI, AppEUI, and AppKey?

These are unique identifiers and keys required for your LoRaWAN device to connect to the network and securely transmit data. DevEUI is the unique number of the device itself, AppEUI is the application identifier, and AppKey is the secret key for activation.

Where can I find my device's DevEUI and other identifiers?

These identifiers are located on a sticker on the device itself and/or on its packaging. They are presented as a QR code, which can be easily scanned with a mobile phone. Also, after connecting the device, you will be able to see this data in the mobile application.

How do I configure my LoRaWAN device?

Configuring our LoRaWAN devices is very simple — using a special mobile application on your Android smartphone via Bluetooth. Simply install the application, enable Bluetooth on your phone, and follow the instructions in the application.

Can I configure the device with an iPhone?

Currently, our mobile configuration application is only available for Android devices. An Apple iOS version is planned for future release. Stay tuned for our updates!

My device is not turning on. What should I do?

Make sure the device is properly connected to a power source (if it's not battery-powered) or that the batteries are correctly installed and not discharged.
Important: The device is shipped in an inactive (hibernation) mode for storage and transportation. To put the device into operation, this mode must be disabled. Device activation is performed using NFC: you need to bring your smartphone close to the device with NFC technology enabled. After this, further configuration via Bluetooth using the mobile application becomes possible.

My phone doesn't see the device via Bluetooth. What's the problem?

Make sure Bluetooth is enabled on your Android smartphone. Try bringing your phone closer to the device. Also, check if you have granted the mobile application the necessary permissions to use Bluetooth in your phone's settings.

Do I need an internet connection for the LoRaWAN device to work?

The LoRaWAN device itself does not require a direct internet connection. It transmits data to LoRaWAN gateways, which are already connected to the internet and send data to the server. An internet connection is not needed to configure the device via the mobile application, but it will be required to view data on the server.

How often does the device send data?

The frequency of data transmission depends on the device settings and the type of meter. This is configured via the mobile application. Remember that the more often the device sends data, the faster the battery drains.

Can I use the device outdoors?

Most of our LoRaWAN devices have a dust and moisture-protected casing, allowing them to be used both indoors and outdoors. However, always check the IP protection class specified in the characteristics of the specific device to ensure its suitability for outdoor conditions.

Can an unauthorized person configure the device?

No, device configuration is password-protected. Without knowing the password, access to settings is impossible.

What is the default password for device configuration?

The default password for device configuration is “1111”.

Can the device firmware be updated remotely?

Currently, remote firmware update functionality (FUOTA - Firmware Update Over The Air) is not supported. Firmware updates are performed locally.

What is the CI200-LW pulse counter for?

CI200-LW is designed to monitor the state of discrete inputs (counting pulses or monitoring an alarm signal) and collect readings from metering devices with pulse output. It can also monitor the state of limit switches, pressure/temperature relays.

How many pulse inputs does CI200-LW have?

The device has 4 pulse-security inputs.

What powers CI200-LW?

The counter can be powered either by an internal battery (up to 5 years of autonomous operation) or by an external DC power source with a voltage from 5 to 30 V.

Does the power type affect LoRaWAN operation?

Yes, when powered by battery, the device operates in LoRaWAN Class A (energy-efficient mode). When connected to external power, the device can operate in LoRaWAN Class C, which provides continuous air listening and faster command delivery.

Can CI200-LW be used outdoors?

Yes, the counter has an IP65 enclosure protection rating and can operate at temperatures from -40 to +85 °C, allowing it to be used outdoors.
