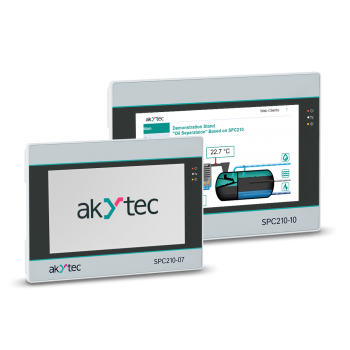

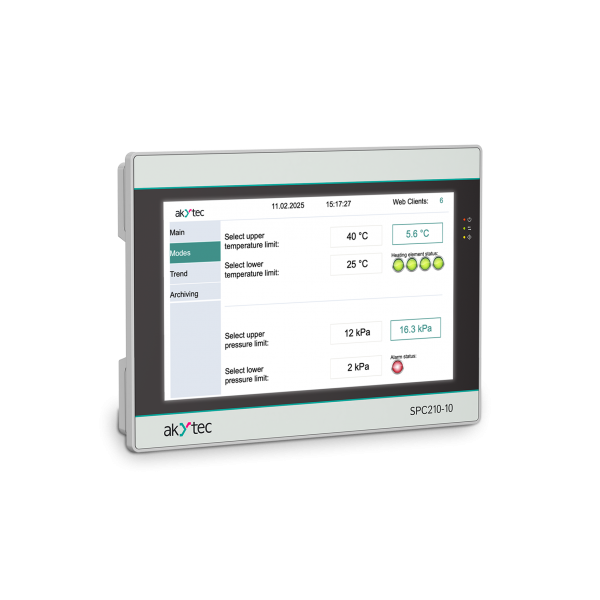

SPC210 Touchscreen Programmable Controllers

SKU: SPC210
The akYtec SPC210 combines the advanced functionalities of a PLC (Programmable Logic Controller) with the user-friendly interface of an HMI-panel (Human-Machine Interface), offering high-end process control and wide automation capabilities.

USB interfaceSDRS485 interfaceRS232 interfacebuilt-in real-time clockModbusTCPIP65HVACEthernetCodesys24VDCAmbient temperature

* Required Fields

- +
Product Description
    Details
    Product Description

    By merging the functionalities of a PLC and an HMI into one device, the akYtec SPC210 simplifies system architecture, reduces hardware requirements, and streamlines operations.

    This integrated design saves valuable space within automation cabinets, allowing for more flexible installation and efficient use of available space. By reducing the number of separate devices needed, the akYtec SPC210 lowers both initial investment and long-term maintenance costs.

    Designed for compatibility with Mx110 and Mx210 modules, the akYtec SPC210 fits into existing systems, facilitating upgrades and expansions without compatibility issues.

    Features
    • Available in 7” (800×480) or 10.2” (1024×600) resistive touchscreens.
    • Includes Ethernet, 3×RS-485, 1×RS-232, USB Host, USB Device, SD card slot, and one RS-485 port with galvanic isolation.
    • Protocol support: Modbus (RTU, ASCII, TCP), OPC UA (Server), MQTT (Client), SNMP (Manager/Agent)
    • Project and firmware updates via USB and SD storage devices.
    • Web visualization for real-time process monitoring.
    • OS: embedded Linux.
    • Customizable watchdog timer to ensure system reliability.
    • Application protocols: Supports NTP, FTP, FTPS, HTTP, HTTPS, SSH, SMTP/IMAP/POP3, OpenVPN, WireGuard.
    • Database connectivity: Compatible with MySQL, MsSQL, and PostgreSQL.
    • GSM/GPRS modem support: Facilitates remote connectivity.
    • Programming on CODESYS V3.5.
    • Expandable I/O: Additional I/O points can be connected via any built-in interface.
    • The delivery includes a DB9-to-terminal adapter with built-in 120 Ohm resistors (activated by DIP switches).
    • USB-A direct connection: Supports peripherals like mouse and keyboard.
    • IP65 protection: Ensures durability and reliability in harsh environments.
    Recommended applications

    HVAC systems
    Efficiently manage heating, ventilation, and air conditioning systems to optimize energy usage and maintain ideal indoor climates.

    Public utilities (ITP, CTP)
    Enhance control and monitoring of infrastructure systems for utilities, ensuring reliable and efficient service delivery.

    Water treatment plants
    Automate and control water purification and distribution processes, ensuring high safety and environmental compliance standards.

    Climate control equipment
    Maintain precise environmental conditions in various settings, promoting comfort and operational efficiency.

    Building material manufacturing
    Streamline and monitor production processes to ensure consistent quality and operational efficiency.

    Programming with CODESYS V3.5

    akYtec SPC210 controllers are programmed using the widely recognized CODESYS V3.5 environment, which adheres to IEC 61131-3 standards:

    Five programming languages
    Provides flexibility for specialists from different fields to use the language they are most comfortable with.

    Integrated visualization editor
    Facilitates the creation of detailed visualization projects, enhancing system monitoring and control.

    Advanced debugging tools
    Includes robust debugging and simulation features to ensure reliable and error-free programming.

    Extensive libraries
    Offers a wide range of pre-built libraries to simplify and accelerate the development process.

    Scalable design
    No inherent limits on the number of variables or blocks, allowing for scalable and complex project implementations.

    Specifications

    Parameter

    SPC210-07

    SPC210-10

    Processor

    4х Cortex-A35

    Frequency

    1200 MHz

    ROM

    4 GB (eMMC)

    RAM

    512 MB (DDR3)

    Retain Variable Memory

    64 KB (MRAM)

    Minimum Cycle Time

    10 ms

    Real-Time Clock (RTC)

    Yes

    Sound

    Piezo Buzzer, controllable via program

    Display

    Display Type

    TFT LCD, resistive

    Backlight Type

    LED (LED backlight)

    Number of Colors

    16 million

    Diagonal

    7.0 inches

    10.2 inches

    Resolution

    800×480 pixels

    1024×600 pixels

    Pixel Size (W×H)

    0.1926×0.1790 mm

    0.2775×0.2760 mm

    Active Display Area (W×H)

    154.08×85.92 mm

    222.00×132.48 mm

    Brightness

    300 cd/m²

    350 cd/m²

    Contrast Ratio

    500:1

    Viewing Angle (L/R/T/B)

    80/80/60/80°

    65/65/45/65°

    Backlight Lifetime

    50,000 hours at 25 °C

    Interfaces

    COM Ports

    3 × RS-485, 1 × RS-232; RS-485-1, RS-485-2, RS-485-3 with pull-up resistors (1 kΩ, 1 kΩ, 10 kΩ);
DB9M (RS-485-1, RS-485-2, RS-232), terminal block (RS-485-3);
    RS-485-3 with 1000 V galvanic isolation; RS-232 signals – Rx, Tx, GND;
RS-485 signals – A, B;
    independent interfaces;
    supported protocols: Modbus RTU (Master/Slave), Modbus ASCII (Master/Slave);
    includes SPC210 adapter (DB9 to spring terminal adapter);
    RS-485-3 interface with built-in 120 Ω termination resistors (DIP switch).

    Ethernet

    1 × Ethernet 10/100 Mbps (RJ45) for device connection, project upload, and web visualization; supported protocols: Modbus TCP (Master/Slave), OPC UA (Server), MQTT (Client/Broker), SNMP (Manager/Agent).

    USB Device

    1 × USB 2.0 B (for project upload)

    USB Host

    1 × USB 2.0 A (for archives, recipe file import, project upload; max current 500 mA)

    SD Card

    For archives, recipe file import, project upload

    Power

    Power Supply Type

    DC

    Power Supply Voltage Range

    15–28 V

    Nominal Power Supply Voltage

    24 V

    Max Inrush Current

    14 A for 200 µs

    Max Power Consumption

    15 W

    20 W

    Insulation Resistance

    10 MΩ at 500 V DC

    Insulation Voltage

    500 V AC (max 1 minute)

    Programming

    OS Version

    Linux 4.19.232-rt104

    Programming Environment

    CODESYS V3.5 SP17 Patch 3

    Enclosure

    Design

    Panel mounting

    Ventilation Type

    Natural ventilation

    Vibration Resistance

    10–25 Hz in X, Y, Z directions with 2G acceleration for 30 minutes

    Dimensions (W×H×D)

    (201.2×147.2×39) ± 1 mm

    (272×191×41.5) ± 1 mm

    Mounting Dimensions

    192×138 mm

    260×179 mm

    Protection Class (front panel)

    IP65

    Protection Class (rear panel)

    IP20

    General Characteristics

    Gross Weight

    ≤ 1 kg

    ≤ 1.6 kg

    Average Service Life

    ≥ 10 years

    Mean Time Between Failures

    ≤ 60,000 hours
Additional Information
FAQ

    FAQ

    How is the SPC210-XX programmed, and what software is required?
    The device is programmed using CODESYS V3.5, which is an IDE designed for creating control applications for programmable logic controllers (PLCs).
    Rate the answer?

    Total rating: 4.8

    What display options are available on the SPC210-XX?
    It comes with two display options: a 7-inch and a 10-inch TFT LCD, each supporting a resistive touchscreen, 16 million colors, and high contrast for clear visualization in industrial environments.
    Rate the answer?
    Does the SPC210-XX support real-time data access and remote monitoring?
    Yes, it supports Modbus TCP, OPC UA, and MQTT protocols, allowing it to exchange data with SCADA systems and IoT platforms for real-time monitoring and control.
    Rate the answer?
    Can the SPC210-XX operate in high-temperature or humid environments?
    The device operates within an ambient temperature range of -10 to +55 °C and relative humidity of 30-80% (non-condensing). It’s suitable for controlled, non-hazardous environments.
    Rate the answer?

    Total rating: 5.0

    What power requirements should be met for the SPC210-XX?
    It operates on 24 VDC, with an acceptable range from 15 to 28 VDC. Make sure the power source can handle inrush currents up to 14 A within 200 μs.
    Rate the answer?
    Can I connect the SPC210-XX to multiple devices simultaneously?
    Yes, it supports RS485 and RS232 interfaces independently, enabling simultaneous communication with multiple devices.
    Rate the answer?

    Total rating: 1.0

    What are the security features available for remote access?
    The device offers secure access through SSH, SFTP, and FTP configurations, which can be managed via its web interface. User accounts and passwords can also be set for secure login.
    Rate the answer?
    How does the SPC210-XX handle program data during a power failure?
    It has Retain-memory (64 kB MRAM) for storing critical data variables that need to persist through power cycles, and a RTC (Real Time Clock) powered by a replaceable CR2032 battery for keeping time.
    Rate the answer?

    Total rating: 4.0

    How is it possible to configure the device?
    The device can be configured over USB or Ethernet. When connected to a PC, the default USB IP is 10.0.6.10, and the Ethernet IP is 192.168.0.10.
    Rate the answer?
    Does the SPC210-XX have any file storage capacity?
    It has 4 GB ROM and supports external USB flash drives and SD cards. Supported file systems include FAT16, FAT32, NTFS (read-only), and ext4.
    Rate the answer?
    Can I use USB 3.0 devices with the SPC210-XX?
    USB 3.0 devices that are backward compatible with USB 2.0 should work; however, USB 3.0 devices without support for earlier USB versions may not function correctly.
    Rate the answer?
    What should I do if I need to reset the device to factory settings?
    Factory settings can be restored via the System/Backup tab in the configuration web interface by selecting the Reset button.
    Rate the answer?
    What maintenance does the SPC210-XX require?
    Basic maintenance includes cleaning with a dry or slightly damp cloth, checking for loose wiring, and inspecting the mounting for stability. Avoid using solvents or abrasive cleaners on the touchscreen or enclosure.
    Rate the answer?
    How do I update the firmware?
    Firmware updates are available from the akYtec’s website. They can be applied through the configuration web interface, which provides a streamlined process for firmware replacement.
    Rate the answer?

    Total rating: 1.0

    What are the options for network settings?
    The device’s Ethernet IP is set to 192.168.0.10 by default, with subnet 255.255.0.0. The USB virtual Ethernet port operates with IP 10.0.6.10.
    Rate the answer?
    Is there a warranty for the SPC210-XX, and what does it cover?
    The SPC210-XX is covered by a 24-month warranty from the date of sale, provided the device is used according to the specified operating, storage, and transportation conditions.
    Rate the answer?

    Total rating: 1.0

    How long does the SPC210-XX take to boot up after powering on?
    The device typically takes about 90 seconds to complete its boot process. Once booted, any user program stored in memory starts executing automatically.
    Rate the answer?

    Total rating: 2.0

    What should I do if the touchscreen is unresponsive or inaccurate?
    If the touchscreen is unresponsive or inaccurate, try calibrating it using the on-screen configurator. If the issue persists, check for any physical damage and ensure the device is free from moisture or contaminants. If there are some troubles, feel free to contact us at info@akytec.de
    Rate the answer?
    Can the SPC210-XX be used in explosive or chemically active environments?
    No, the SPC210-XX is not designed for use in explosive environments or areas with chemically active substances. Ensure it’s only used in non-hazardous, clean environments.
    Rate the answer?
    How do I connect the SPC210-XX to multiple RS485 devices?
    Use twisted-pair cables for RS485 connections, ensuring each device is wired in a daisy-chain configuration. The total length of the RS485 network should not exceed 1200 meters.
    Rate the answer?

    Total rating: 1.0

    What type of Ethernet cables should I use with the SPC210-XX?
    Use Category 5 UTP or STP cables with a maximum length of 100 meters. For critical applications, shielded cables are recommended to reduce interference.
    Rate the answer?
    How can I control access to the device remotely?
    Access can be managed through SSH and FTP settings within the device’s web interface. Secure the device with a strong password and limit access to trusted users.
    Rate the answer?
    How do I switch between USB Host and USB Device interfaces?
    The USB Host and USB Device ports cannot be used simultaneously. You can switch between them in the web or on-screen configurator by selecting the active USB interface as needed.
    Rate the answer?
    What is the recommended file system for external USB or SD storage?
    The device supports ext4 for high reliability, as it’s a log-structured file system that minimizes risk during power failures. FAT16 and FAT32 are also supported, but they’re more prone to data corruption if power is lost.
    Rate the answer?

    Total rating: 4.0

    Can the SPC210-XX connect to cloud platforms?
    Yes, the device supports MQTT protocol, commonly used for IoT applications. It can connect to cloud platforms that accept MQTT connections, allowing integration with IoT ecosystems. You can always use SPC210 with our free of charge cloud.akytec.de.
    Rate the answer?
    Can I display custom graphics on the SPC210-XX?
    Yes, custom graphical elements can be integrated within your user program using CODESYS. These graphics can then be displayed on the device’s screen to enhance operator interaction.
    Rate the answer?
    How can I troubleshoot data communication issues on the SPC210-XX?
    Check for proper cable connections, ensure baud rates match, and confirm interface settings are correctly configured for each device. Using shielded cables can reduce electromagnetic interference (EMI), which may otherwise affect data integrity.
    Rate the answer?
    Does the SPC210-XX offer protection against voltage surges?
    While the device has an insulation resistance of 20 MΩ at 500 VDC, it’s advised to use an external surge protector to safeguard against unexpected power surges.
    Rate the answer?
    What happens if the device loses power while writing data to external storage?
    In the event of a power failure during data write operations, non-log-structured file systems like FAT16 or FAT32 may experience data corruption. For higher reliability, ext4 file systems are recommended.
    Rate the answer?
    What are the default login credentials for the web interface?
    The default username is root, and the password is akytec. It’s recommended to change these for improved security.
    Rate the answer?
    What steps should I follow if the firmware update fails?
    If a firmware update fails, restart the device and attempt the update again. Ensure a stable connection and sufficient power supply during the update. Consult akYtec support if issues persist at info@akytec.de
    Rate the answer?
    How can I determine if the device is running my program correctly?
    The CODESYS Program Indicator will light up when a program is actively running. Additionally, you can monitor program execution on the touchscreen and verify correct operation through on-screen elements.
    Rate the answer?

    Total rating: 1.0

    How often should I replace the RTC backup battery?
    The CR2032 battery typically lasts up to 5 years. If the device operates in extreme temperatures, this may shorten the battery lifespan.
    Rate the answer?
    Can I use multiple network protocols simultaneously?
    Yes, the SPC210-XX supports simultaneous use of Modbus TCP, OPC UA, MQTT, and SNMP over Ethernet, allowing integration with a wide variety of control and monitoring systems.
    Rate the answer?
    How do I back up my project settings?
    Project settings can be saved onto a USB or SD card and reloaded onto the device if needed. It’s recommended to regularly back up configurations, especially after updates or changes.
    Rate the answer?
    What does the device's IP65 rating mean?
    The IP65 rating on the front panel means it is dust-tight and protected against water jets, making it suitable for harsh industrial environments. However, the rear has an IP20 rating and should be protected from direct water exposure.
    Rate the answer?
