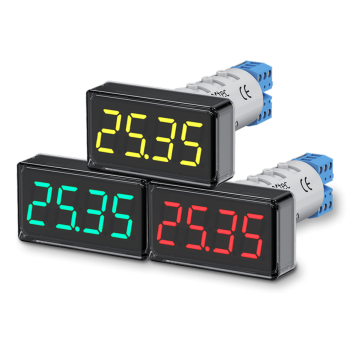

- 4-digit three-color indicator.
- Universal input: Supports direct connection of resistance thermometers, thermocouples, pressure sensors, humidity sensors, level sensors, etc. (For more details on the characteristics of measurement sensors, refer to the sensor specifications.)
- Three-color indication: Configurable according to required thresholds.
- Operating modes: Continuous indication of the measured parameter in red, yellow, or green, similar to the ITP14 and ITP16.
- Alarm indication: Triggered by signal interruption or when measurements exceed specified limits.
- Output device: For signaling or control with 200 mA and 42 V.
- Power supply: From an external DC voltage source of 10...30 V.
- Design features:
- Mounts into a 22 mm hole.
- Removable screw terminals.
- Operating temperature range: -40 to +60 °C.
- Enclosure protection rating: IP65 from the front panel.
- Current 0...5 mA, 0(4)...20 mA
- Voltage 0(2)...10 V
- RTD: 50/100/1000 Ω Cu, Pt, Ni, M, P
- Thermocouples: B, J, K, N, R
Functionality of ITP17:
Display operation
The visual notification of the measured value status in ITP-17 is accompanied by an automatic color change. Let's consider an example of setting up color signaling of the heating process. Four events are defined: normal, underheating, overheating and emergency overheating. Each event has its own indicator color.
_1x.png)
The ITP-17 indicator setup allows for the configuration of any user-defined color change thresholds and the corresponding colors within the signal measurement range. The only rule is that the threshold values for each subsequent color zone must be greater than the previous threshold.
_1x.png)
|
|
|
| Examples of wiring diagrams for AkYtec devices | ||
|
Parameter |
Meaning |
|
Frame |
|
|
Dimensions |
26×48×65 mm |
|
Ambient temperature |
-40…60 °C |
|
Protection class |
III |
|
IP Code |
front IP65, rear IP20 |
|
Display |
|
|
Display type |
Four-digit seven-segment display |
|
Character height |
14 mm |
|
Display color |
Red\Green\Yellow |
|
Input signal characteristics |
|
|
Number of measurement channels |
1 |
|
Input signal type |
|
|
Input resistance when measuring voltage, no more than |
250 kОm |
|
Input polling time, no more than |
0,3 s |
|
Configuration Interface |
MicroUSB |
|
Power supply |
|
|
Power supply |
10…30 V DC (nominal voltage 24 V) |
|
Power consumption, max. |
1 W |
- What type of signal does the Three-color Universal Indicator ITP17 support? How should I connect it?
- Can I connect the Three-color Universal indicator ITP17 to a temperature sensor PT100 directly or should I use a 4-20 mA converter?
- What software do I need to program the ITP17?
- What is the IP rating of this display?
- What is the ITP17’s accuracy? What about its sample time?
- Is there any galvanic isolation between the input, the output, and the voltage supply circuit?
- What is the maximum distance to connect an RTD or a TC signal to the ITP17?
- In what colors is the display available?
- What diameter should the mounting cutout be to install this display?
- Can I connect several Three-color Universal Indicator ITP17 to the common analog output? How should I connect them, in series or in parallel?
