PID Temperature controller TCR10

PID Temperature controller TCR10

SKU: TCR10

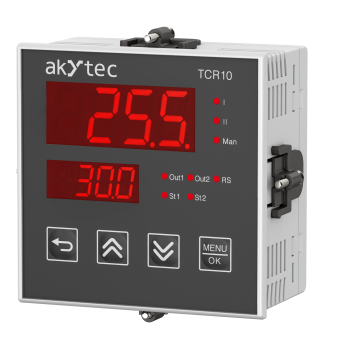

The TCR10 is a universal PID controller designed for precise measurement and control of temperature, pressure, level, humidity, flow, concentration, and other physical parameters in various industrial processes.Depending on the application, the controller can operate in PID, PI, PD, or On/Off control modes.
The Auto-Tune function automatically determines the optimal PID parameters, ensuring stable and accurate control without manual adjustment.A key strength of the TRM10 is its high-precision PID algorithm, maintaining process stability within ±0.2 °C.
The built-in RS-485 interface (Modbus ASCII/RTU) enables remote configuration, monitoring, and integration into automation systems.

Main features of TCR10:

Universal input for various sensor types: thermocouples, RTDs, and analog signals (0–10 V, 4–20 mA).
Multiple control modes: On/Off, P, PI, PD, PID.
Auto-Tune function for automatic PID parameter optimization.
Remote start/stop via additional digital input.
Alarm functions for process deviation and loop break detection (LBA).
USB-C interface for easy configuration from PC (no external power required).
RS-485 (Modbus ASCII/RTU) communication for integration into SCADA and control systems.
Power supply options: 230 V AC or 24 V DC.
Operating temperature range: –40 °C … +50 °C.

* Device variants:

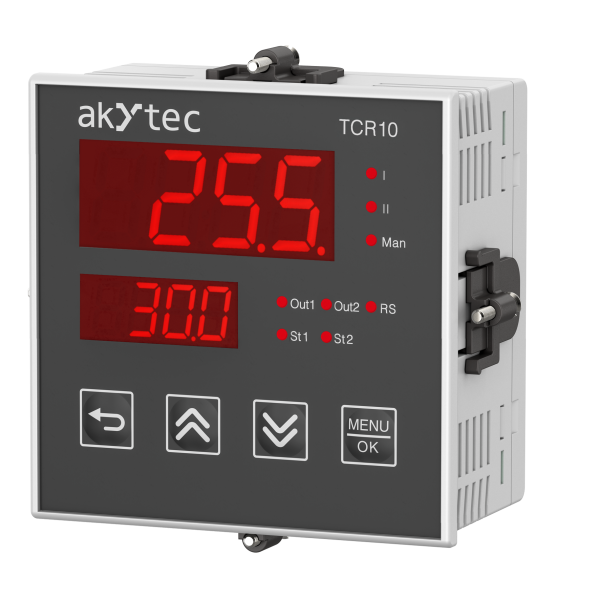

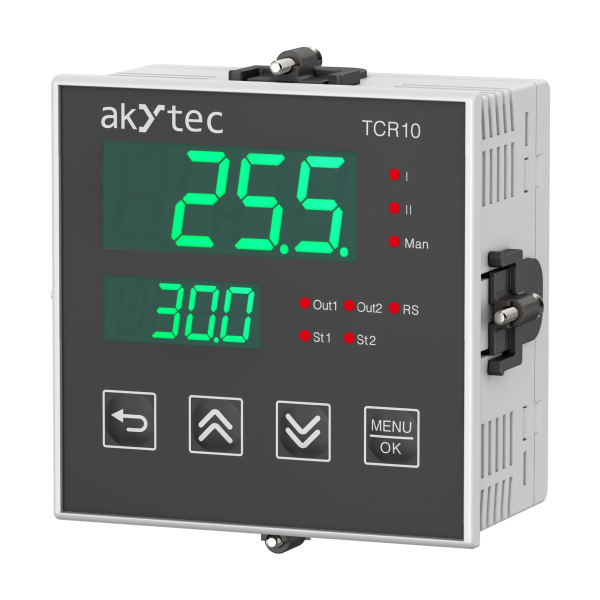

TCR10-P1.RR.RS (PID Temperature controller, enclosure size 96 × 96 × 53 mm, relay outputs (R)) €65.00

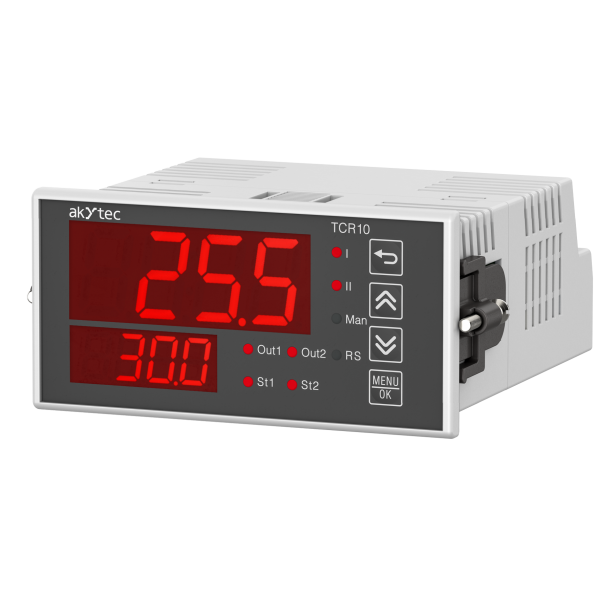

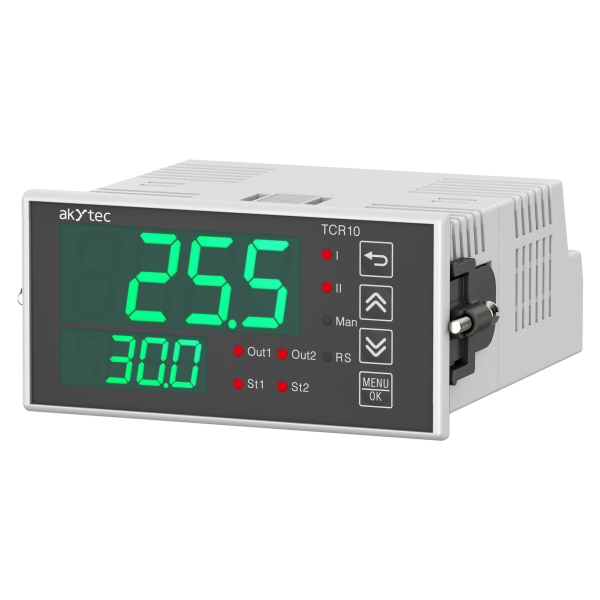

TCR10-P2.RR.RS (PID Temperature controller, enclosure size 96 × 48 × 100 mm, relay outputs (R)) €65.00

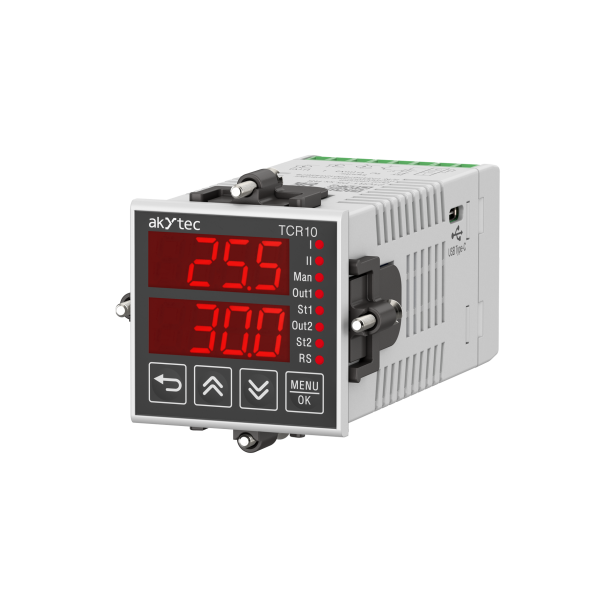

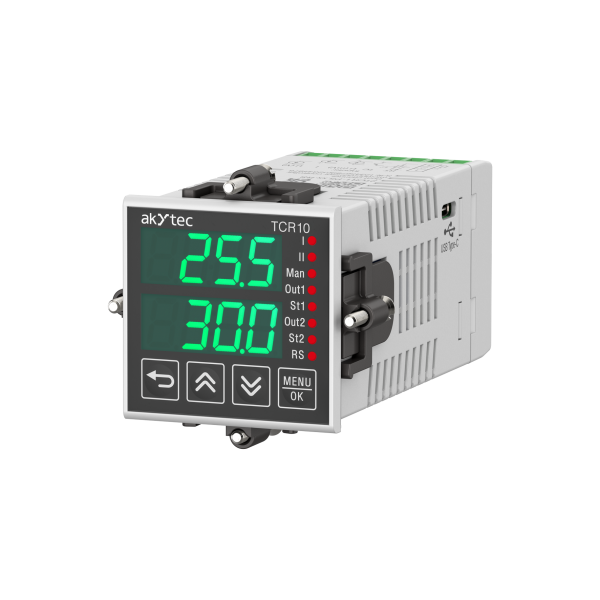

TCR10-P5.RR.RS (PID Temperature controller, enclosure size 48 × 48 × 103 mm, relay outputs (R)) €65.00

* Required Fields

Qty: - +

Product Description

Details

Product Description

Input Signal Handling

Measurement of temperature, pressure, humidity, flow, level, etc., via one channel.
Input signal processing:
- Digital filtering and sensor linearization (offset and slope correction)
- Signal scaling to engineering units
Calculation and display:
- Square root of the measured value
Compatible with sensors connected via intrinsically safe barriers
Analysis of signal dynamics (rising, falling, holding)
Power supply for active sensors from built-in source (available for 24 V DC modification only)

Display & Configuration

Digital display shows:
- Measured value, setpoint, output level, calculated function, or signal trend
Automatic rotation of displayed parameters
Factory reset function to restore default settings
Menu access control and protection against unauthorized parameter editing

Output & Control

Configurable control logic: heating, cooling, alarm, recorder, PID controller

Alarm & Emergency Handling

Monitoring of:
- Sensor break or “stuck” signal in the control loop
- Sensor disconnection
- Measured value exceeding allowable range for the selected sensor type
Automatic restoration of control after sensor recovery or return to normal measurement range
Failsafe output switching in case of alarm or STOP mode activation

Interfaces

USB Type-C: device configuration from a PC
RS-485 (available for RS-485 modification):
- Data logging and configuration via PC
- Remote process control: start/stop, mode change, and setpoint adjustment

Specifications

Parameter	Value
Power supply
Power supply	230 (90...264) V AC at 50 (47...63) Hz 24 (21...120) V DC
Power consumption, max.	11 VA 9 W
Inputs
Number	2
Input 1 Function	Measurement
Input 2 Function	Additional (remote start and stop of control)
Outputs
Number	2
Type	R – Electromagnetic Relay Contacts
Configuration interface
Type	USB Type-C
Data exchange protocol (mode)	Modbus-RTU (Slave)
Data exchange interface
Type	RS485
Data exchange protocol (mode)	Modbus-RTU (Slave), Modbus ASCII (Slave)
Mechanical
Dimensions P1 enclosure P2 enclosure P5 enclosure	(96 x 96 x 53) ± 1 mm (96 x 48 x 100) ± 1 mm (48 x 48 x 103) ± 1 mm
IP Code (front/rear)	IP54/IP20
Weight (gross/net)	approx. 400 g / 250 g
Average service lofe	12 years

Сonfiguration software

ToolPro

Documents And Software

Additional Information

FAQ

What types of sensors are supported by the TCR10? Are 4–20 mA and 0–10 V signals supported?

Yes, the TCR10 supports a wide range of standardized analog signals:

Current signals: 0–5 mA, 0–20 mA, 4–20 mA
Voltage signals: 0–5 V, 0–10 V

It also supports a broad range of RTD and TC (thermocouple) sensors.

How is data logging performed? Is there built-in memory?

The TCR10 does not have a built-in data logging function. For this purpose, it is recommended to use external devices such as the Akytec MSD200 module, which can archive data via the RS-485 network.

Which parameters can be configured via Akytec Tool Pro?

With the Akytec Tool Pro software, you can configure the following:

Operating modes of logic units (LU): comparator, P-controller, data logger
Types of input signals
Temperature setpoints and hysteresis
Alarm and fault parameters
Display settings

All configurations are saved in the device’s non-volatile memory

What are the software requirements for configuring the device?

For configuring the TCR10, it is recommended to use the Akytec Tool Pro software, which is compatible with Windows operating systems. The software provides an intuitive interface for device configuration, monitoring, and firmware updates.
