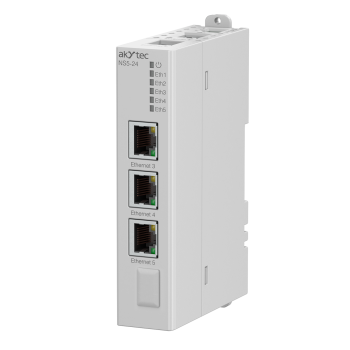

Product Description
- Simple and reliable to use. No additional software is required for installation or operation. They operate on a plug-and-play basis.
- Designed to function in harsh conditions with a temperature range of -40…+55 °C.
- Wide power supply range: 12…48 V DC.
- Automatic detection of MDI/MDI-X connection types. Automatic identification of cable types with straight (568B) and crossover (568A) pinouts supported by connected devices.
- Compact dimensions of the plastic housing: 25 × 100 × 86 mm. Easily mountable on a DIN rail. Includes plugs for closing unused ports.
Details
Features of NS5-24:
Connection option:
|
Main properties |
|
|
Number of ports |
5 |
|
Switching layer |
L2 |
|
Power supply |
24 (10…48) VDC |
|
Ethernet |
|
|
Ports and supported interfaces |
5 × 10/100Base-T/TX |
|
Connector type |
8P8C (RJ45) |
|
Standard |
IEEE 802.3i/802.3u |
|
Enclosure |
|
|
Mounting |
DIN rail |
|
Dimensions |
28,0 × 124,0 × 83,5 mm |
|
IP Code |
IP20 |
|
Weight |
0.15 kg |
Documents And Software
- STEP Model
- DWG file
- ePLAN
| NS5-24 |
|
STEP_NS5-24 (*.zip 5.8 mb)
|
|
|
DWG_NS5-24 (*.zip 343.9 kb)
|
|
|
|
EPLAN_NS5–24 (*.zip 20.7 mb)
|
|
