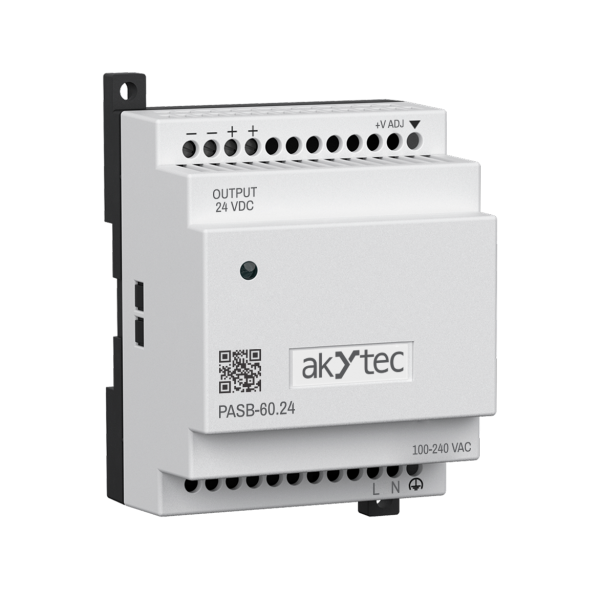

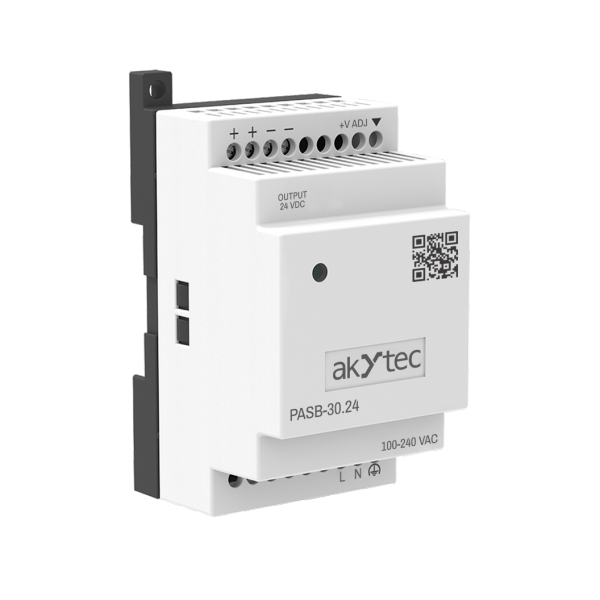

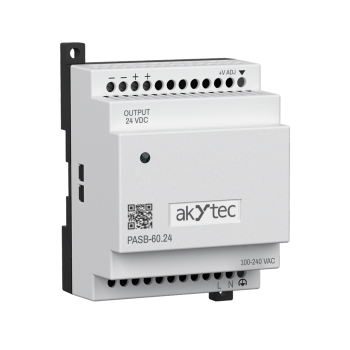

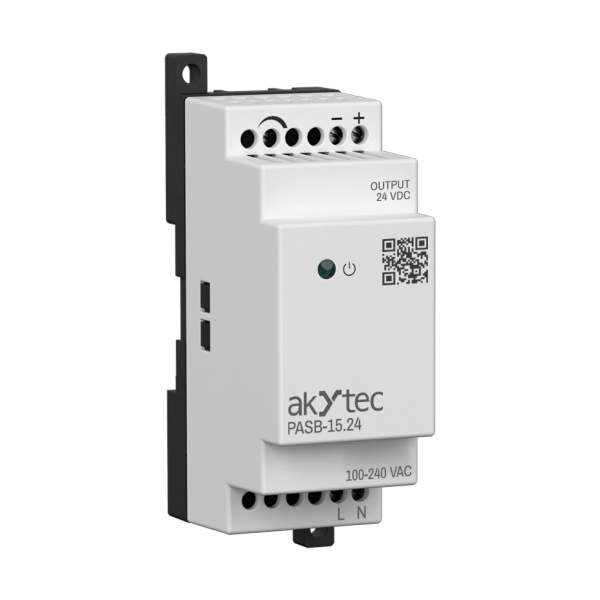

- Conversion of AC/DC voltage to a stable DC voltage.
- Stable operation over a wide range of input voltages without reducing output-voltage characteristics.
- Reliable start-up of loads with high input capacitance (operator panels, modems, etc.).
- Protection against overvoltage and impulse interference at the input.
- Protection against overload, short circuit, and overheating.
- Output-voltage adjustment using an internal trimming resistor within ±8 % of the nominal output voltage, with power retention.
- Indication of output-voltage presence.
Main functions
Functional capabilities
Overload protection of the “output-current-limitation” type
Short-circuit protection
In the event of a short circuit, PASB-15/30/60.24 power supplies go into “cut-off” mode until the fault is cleared.
Overheating protection
In the event of overheating, PASB-15/30/60.24 power supplies go into “cut-off” mode.
 |
 |
| Graph for PASB-15/30.24 | Graph for PASB-60.24 |

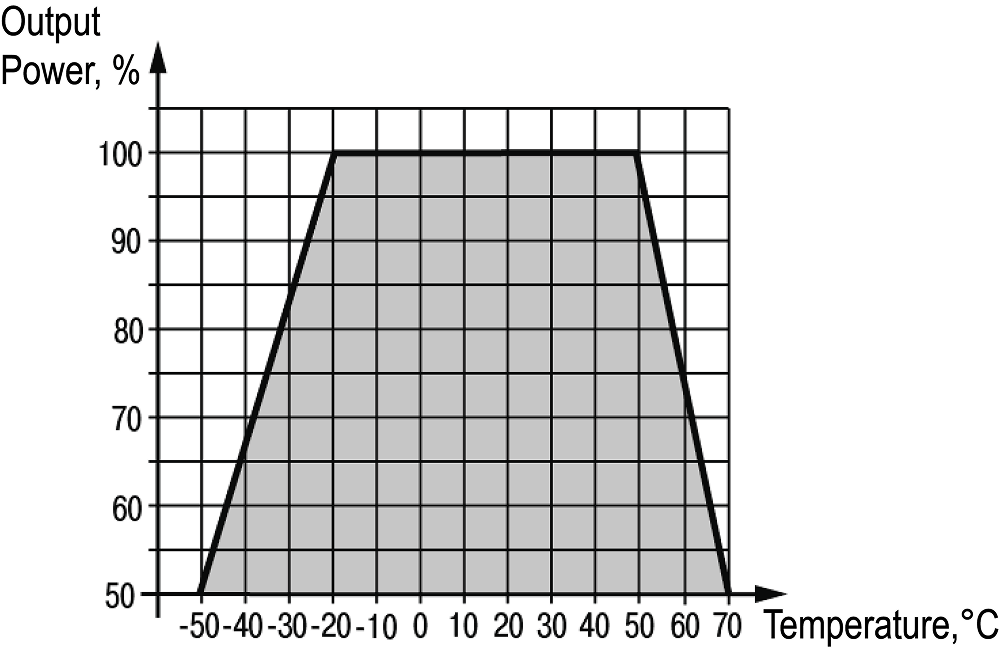

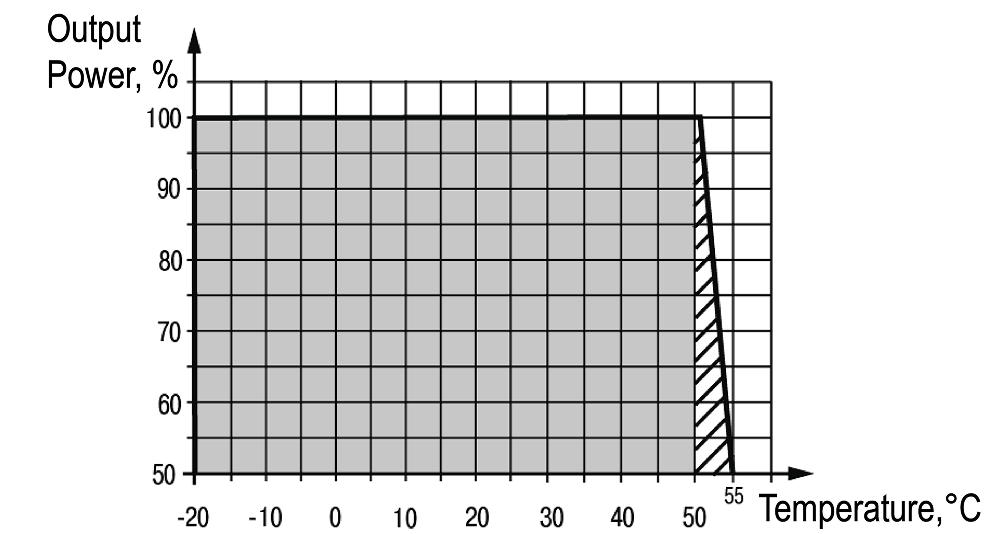

Power reduction graph for PASB-15/30/60.24 depending on the ambient temperature. The shaded area on the graph shows the temperature and load range in which the power supply unit can be operated.
|
Input: |
|
|
AC Voltage limits |
90...264 V |
|
DC Voltage limits |
110...370 V |
|
Input AC voltage frequency |
45...65 Hz |
|
Output voltage correction |
22...26 V |
|
Output: |
|
|
Output voltage instability when the supply voltage changes |
±0,2 % |
|
Output voltage instability when load current changes from 0,1 Imax to Imax, no more than |
±0,5 % |
|
Electrical insulation strength: |
|
|
- input – output (current value) |
3 kV |
|
- input – housing (current value) |
1,5 kV |
|
Efficiency coefficient |
Not less than 85% |
|
Enclosure protection rating (front panel) |
IP20 |
|
Operating conditions |
|
|
Ambient temperature |
–20...+50 °С |
|
Atmospheric pressure |
84...106.7 kPa |
|
Relative humidity (at +25 °C and below without condensation) |
no more than 80% |
* 30 and 60 W power supplies blocks can be connected in parallel and in series.
Electrical characteristics
|
Modification of the device |
Power, W |
Output voltage, V |
Max. output current, A |
Output voltage pulsation amplitude, mV |
|
PASB-15.24 |
15 |
24 |
0,63 |
120 |
|
PASB-30.24 |
30 |
24 |
1,25 |
120 |
|
PASB-60.24 |
60 |
24 |
2,50 |
120 |

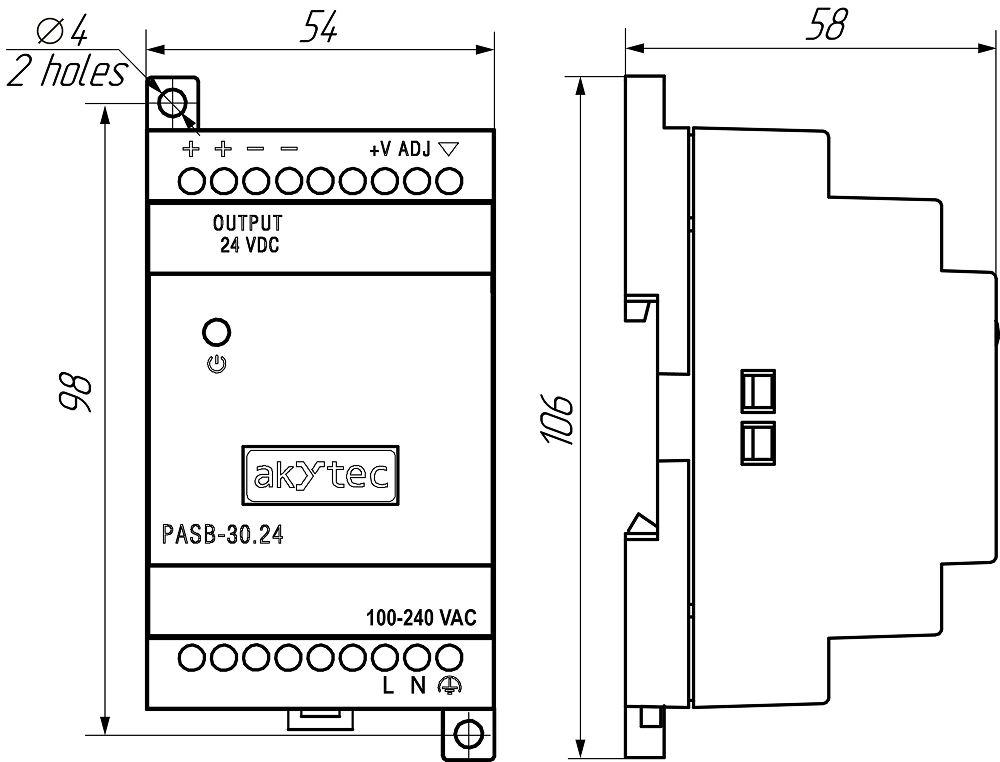

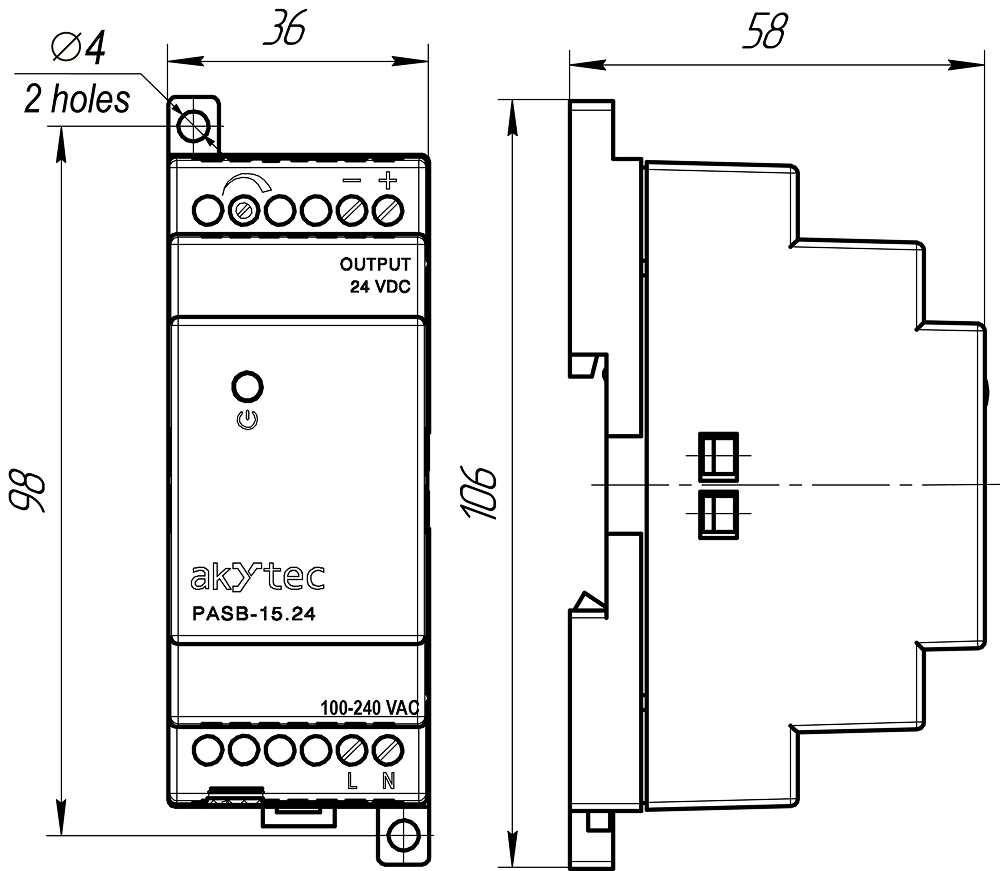

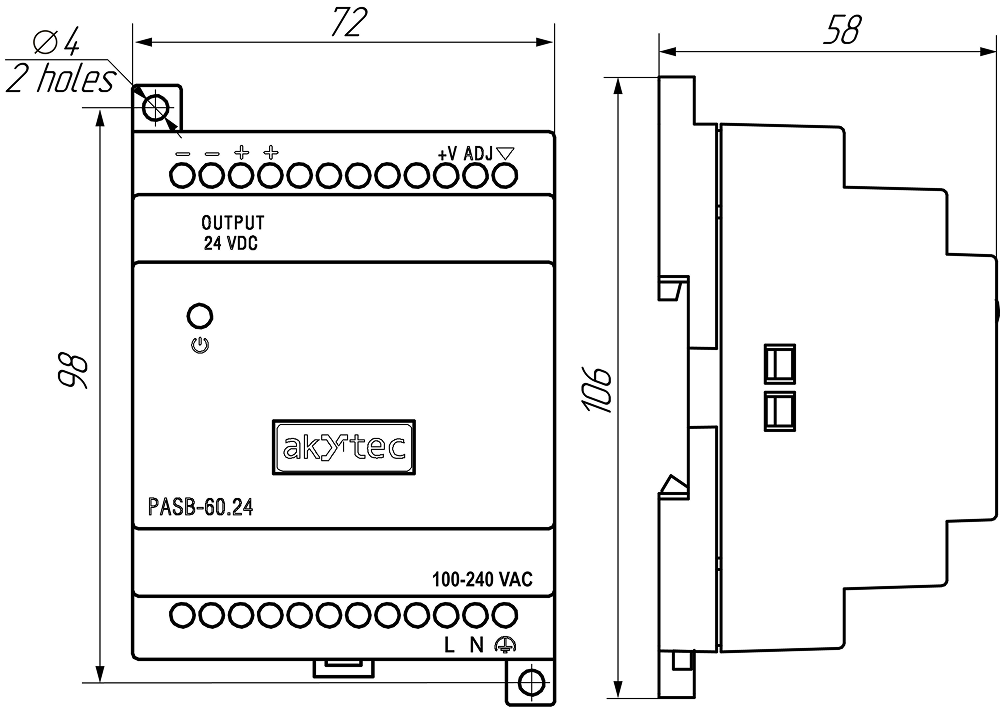

- STEP Model
 |
|
|
 |
|
|
| PASB |
|
STEP_PASB-15.24 (*.rar 11.2 mb)
|
|
STEP_PASB-30.24 (*.rar 12.2 mb)
|
||
|
STEP_PASB-60.24 (*.rar 12.4 mb)
|
